Stanley · No. 7 · 1869–1970
The No. 7 is the standard jointer, 22 inches long with a 2⅜-inch iron and a little over 8 pounds. Stanley made it from 1869 to 1970, with a corrugated 7C from 1898 to 1964. A jointer trues an edge straight or a face flat, and its length does the work, riding over the low spots and taking down the high ones. Patrick Leach puts it with the No. 4 and No. 5 in most hand-tool kits, and Popular Woodworking's basic kit pairs it with a No. 4 smoother. Leach also pushes back on the idea that the sole must be perfectly flat. He's never seen one that is, and the old-timers made their living with them anyway. Christopher Schwarz is warier. He finds a jointer's sole too much iron to flatten by hand and wants one that's reasonably flat and actually works.
Identify and date it
It's 4 inches longer than a No. 6 with the same 2⅜-inch iron, and 2 inches shorter than the No. 8, which takes a wider 2⅝-inch iron. The size number is cast behind the tote on the bigger planes. Stanley's Bed Rock version is the No. 607.
Type Study sweet spot
Types 10–16 (about 1907–1941) have the features most users want.
Date it like a No. 4 by the patent dates behind the frog, the knob height and raised ring, and the lever cap hole. On the bigger planes the number is cast behind the tote at the heel, so check there in the photos. Blue paint means Type 20, 1962 or later.
If you’ll use it
If you flatten boards by hand, this is the medium tool between a fore plane and a smoother. Schwarz sets his for a shaving about .006 inch thick.
Check the whole length for cracks at the cheeks and mouth, and for twist along the body. Broken tote horns, pitting and replaced totes are common.
Buying guide
A No. 7 weighs a little over 8 pounds, and shipping here runs up to $140, enough to move a plane from mid-pack to the top, so compare delivered prices. About 70 are listed, and most complete ones ask $130–210 delivered, with plain user planes starting near $98. Early Types don't cost much more than later ones here, which is why the prelateral Type 4 at about $163 is our collector pick. Ask whether it rocks on a flat surface, zoom in on both cheeks and the mouth for cracks or welds, and ask for packing that protects the tote horn and the mouth. Skip the $200 plane with $140 of shipping.
$97.99est. delivered

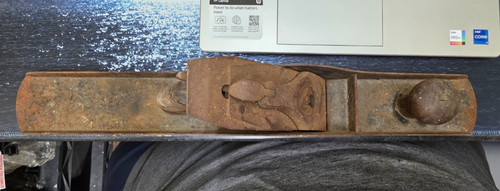

The lowest total on a complete No. 7 at about $98 delivered, more than $30 under the band. The title is just the model name, so ask for photos of the cheeks and mouth and whether it rocks on a flat surface.
stanley bailey no 7 plane
$123.45est. delivered
A corrugated 22-inch No. 7 at about $123 delivered, under the $130–210 band, with only $13.50 of shipping on a plane this heavy. Ask the seller to measure the iron, which should be 2⅜ inches, and for a photo of the full sole.
Stanley Bailey No. 7 Jointer Hand Plane Corrugated Base Woodworking Tool 22"
$162.88est. delivered
A prelateral Type 4 with the low knob per the title, at about $163 delivered, mid-band and no dearer than many later planes. Compare the japanning on the frog and body, and check that the frog has no 3/16-inch hole where a lateral lever was once fitted.
Vintage Stanley Baileys No 7 Prelateral Plane Type 4, 1874-1884 Low Knob
Delivered prices include shipping as eBay quoted it to a US address on Oct 11, 2026. Many sellers charge by distance, so your total may differ. eBay shows yours before you pay.
Snapshot
Checked . Some may have sold.
Delivered prices include shipping as eBay quoted it to a US address on Oct 11, 2026. Many sellers charge by distance, so your total may differ. eBay shows yours before you pay.
Used$97.99est. delivered
$80.00 + $17.99 shipping
Buy It Now$80.00
Good buy
No Type or condition in the title.
Seller: paradisetradepost505
99.4% positive
Used$123.45est. delivered
$109.95 + $13.50 shipping
Buy It Now$109.95
Good buy
Corrugated, 22 inches per the title.
Seller: eauclairetradingpost
99.9% positive
Used$162.88est. delivered
$149.00 + $13.88 shipping
Buy It Now$149.00
This seller takes offers, and many sellers accept less than the asking price.
Fine if you might miss it? Send an offer first. Someone else can still buy it while you wait for a reply.
Want it for sure? Use Buy It Now.
Good buy
Prelateral Type 4 (1874–84) with the low knob per the title.
Seller: 3zzz_thetoolgeezer
100% positive
Used$163.00est. delivered
$145.00 + $18.00 shipping
Buy It Now$145.00
This seller takes offers, and many sellers accept less than the asking price.
Fine if you might miss it? Send an offer first. Someone else can still buy it while you wait for a reply.
Want it for sure? Use Buy It Now.
Our take
Type 7 (1893–99), 22 inches per the title.
Seller: treasures-n-trash
100% positive
Used$169.41est. delivered
$140.00 + $29.41 shipping
Buy It Now$140.00
Our take

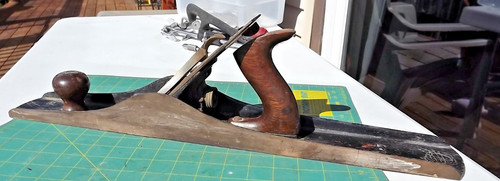

Smooth bottom. $29 of the total is shipping.
Seller: payoff
100% positive
Used$135.00delivered
$135.00 · free shipping
Buy It Now$135.00
Check the seller
Same title as another seller's No. 7. Compare the photos before you buy.
Seller: jimbo-mt
99.4% positive
Used$340.24est. delivered
$200.00 + $140.24 shipping
Buy It Now$200.00
This seller takes offers, and many sellers accept less than the asking price.
Fine if you might miss it? Send an offer first. Someone else can still buy it while you wait for a reply.
Want it for sure? Use Buy It Now.
Priced high
Type 12 per the title, but $140 of shipping takes it to about $340 delivered.
Seller: naranjo2009
100% positive
Used$393.80est. delivered
$312.13 + $81.67 shipping
Buy It Now$312.13
Priced high

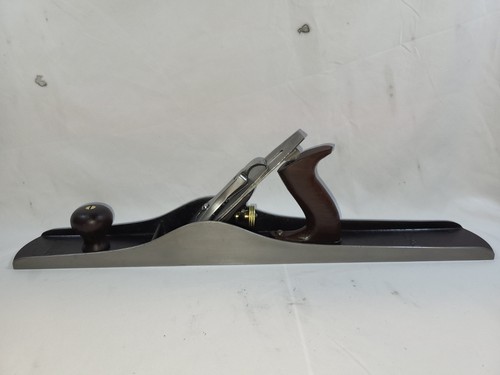

7C Type 11, extra fine per the title, with $82 of shipping from Canada.
Seller: msharris61
100% positive
Prices change daily. The live eBay search shows everything listed now, including anything new since Oct 11, 2026.
